How to Set Up a Garage Door Opener with Integrated Camera in the myQ App

Follow these simple steps to set up your garage door opener with an integrated camera using the myQ app.

Before You Begin

Make sure you have the following:

• A smartphone
• 2.4GHz home Wi-Fi network
• A strong Wi-Fi signal in the garage. For help with determining this, see How to test the Wi-Fi signal strength in my garage
• Your Wi-Fi network name and password
• The myQ App will not operate the garage door opener when operating under battery power.
• The Wi-Fi Garage Door Opener must run a complete cycle before Wi-Fi can be activated.

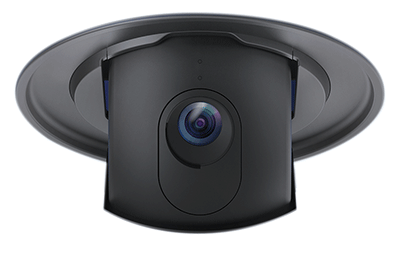

• Incorrect network passwords will prevent connection, indicated by a continuous blue LED. If this happens, exit programming and start over.

Connect Using your Mobile Device

1. Open the myQ app.
2. Access settings:
   • If your app has a Gear Icon in the top right corner, tap the Gear Icon.
   • If your app shows your Initials in the top left corner, tap your Initials.
3. Tap Devices then, tap the + (plus) sign or tap Add new device.
4. Tap Garage Door Opener.
5. Tap Opener with Camera.
6. Review information on the What You Need screen and then tap Next.
7. Select the type of Wall Control that looks like your product and follow the instructions to activate Wi-Fi learn mode.

   	Tap Menu > Use the down arrow and select Program by tapping the side arrow > Use the down arrow and select Wi-Fi Setup by tapping the side arrow >
   	Lift the button cover Press and release the learn button
   	Press and hold the learn button (located on the side) for 6 seconds; the LED light under the front button will begin to flash.

   Note: If your doorbell style button does not have a learn button on the side or if your wall control is not listed, tap on the Don't See Your Wall Control Link.
8. In the myQ app, tap Next.
9. Tap Next when you hear a beep.
10. Tap on Discovered Device.
11. Follow prompt to pull down the camera, tap Next.
12. Select your home Wi-Fi network from the list.
13. Enter your network password and tap Next. Your garage door opener will now connect.
14. Name your garage door opener and tap Next.
    • Note: If this is the first time setting up this camera, you will receive a notification with an offer for a free 30-day video storage trial.

At this point, you have successfully connected your Wi-Fi Garage Door Opener to your home's Wi-Fi network.

If you have trouble connecting your Wi-Fi enabled garage door opener to your Wi-Fi network, see Unable to connect the Wi-Fi Garage Door Opener to home Wi-Fi network Overview.
