Wi-Fi Garage Door Opener | Setup & Connect to Wi-Fi
Connect your myQ Wi‑Fi Garage Door Opener to your home Wi‑Fi network and myQ account for remote monitoring and control. Follow these steps to complete setup and confirm the opener is connected successfully.
Use the myQ app to connect your Wi‑Fi Garage Door Opener to your home Wi‑Fi network. During setup, stay close to the opener, enable Bluetooth on your phone, and have your Wi‑Fi password ready.
💡 Changed Wi‑Fi settings? If your opener was previously connected but you recently changed your router, Wi‑Fi name, or password, the opener will not reconnect automatically. This is a common situation and just requires a quick reconnect. See How to Reconnect to myQ after Changing your Router or Settings.
Before You Begin
✅ Check Opener Compatibility
Your garage door opener must be Wi‑Fi capable to connect directly to the myQ app.
Look for the logo on the opener:
- myQ logo only (no Wi‑Fi symbol): Not Wi‑Fi capable 🚫

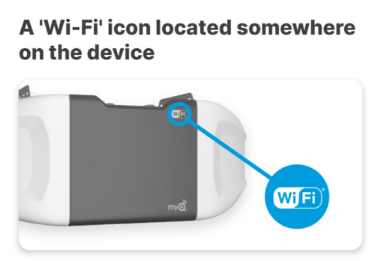

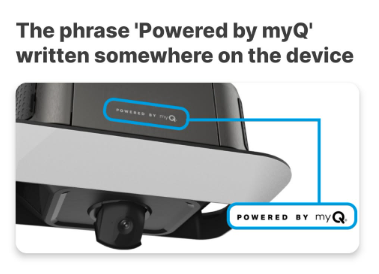

- Powered by myQ logo or Wi‑Fi symbol: Wi‑Fi capable ✅
If yours is not Wi‑Fi enabled, you can connect it using a myQ Smart Garage Hub. See: What Is Needed to Make My Garage Door Opener myQ Compatible?
What You'll Need
✅ A smartphone with the latest version of the myQ app installed
✅ Your home Wi‑Fi network name (SSID) and password
✅ A strong 2.4 GHz Wi‑Fi signal in the garage
✅ Bluetooth enabled on your mobile device
Setup Tips
- Stay connected to your home Wi‑Fi during setup.
- Turning off mobile data can help prevent interruptions.
- Stand within 3 feet of the opener during setup.
- Keep Bluetooth enabled throughout setup.
What is a 2.4GHz Wi-Fi signal, and how do I check mine?+
Most home routers broadcast two signals, 2.4GHz and 5GHz. myQ devices only work on 2.4GHz. If your router shows two separate network names, one often ends in "-5G" or similar, connect the opener to the one without "5G" in the name. If you only see one network name, your router may already be combining both bands, check your router's settings page or the label on the router if you're not sure. For router-specific settings, see myQ Wi-Fi Network Requirements and Router Settings.
Connect Your Garage Door Opener in the myQ App
Step 1: Sign In to the myQ App
- Open the myQ app.
- Log in or create an account.
Step 2: Start Adding a Device
- Tap the Gear icon.
- Tap Devices.
- Tap Add New Device.
- Tap Garage Door Opener
Step 3: Choose Where Your Motor Is Located
The motor is the unit that powers and controls your garage door. This is not the remote or wall control.
- In the myQ app, select the location that matches your opener:
- Tap Continue.
💡 Note: If your opener has a built-in camera, continue with How to Set Up a Garage Door Opener with Integrated Camera in the myQ App instead.
Step 4: Select Why You Are Installing This Opener
- Select the reason that best matches your situation.
- Tap Continue.
Step 5: Enable Bluetooth
Bluetooth allows your phone to detect the opener during setup.
- On the Let's Get Started screen, tap Get Started.
- If prompted, tap Turn On to enable Bluetooth.
- Tap Allow to approve the Bluetooth request.
If you don't receive a Bluetooth pairing request:+
- Exit the myQ app and go to your phone's Wi‑Fi settings.
- Connect to the network that begins with myQ-XXX.
- Return to the myQ app to continue setup and tap Next.
Step 6: Has This Opener Been Connected to myQ Before?
- No
- Continue to step 7.
- Yes, It's Connected to Someone in My Household
- Follow the instructions for myQ Users This lets household members share access without resetting the opener.
- I'm not sure
- Follow the Factory Reset instructions shown in the app. The opener may still be linked to a previous owner's myQ account.
Step 7: Identify and Select Your Wall Control
The app uses the wall control type to determine the correct setup process.
- Select the wall control that matches your opener.
- Verify your selection, then tap Yes, Continue.
- Press the button on your wall control.
- If the door moves, you're all set. Continue to the next step.
- If nothing happens, tap It Didn't Open and follow the steps shown.
Step 6: Put the Opener Into Learn Mode
Learn Mode allows the opener to communicate with the myQ app.
- When prompted, press the Learn button shown in the app.
- The location will vary depending on your model. Follow the guidance shown in the app.
- You should hear a beep and see the opener light blinking blue.
- Tap Continue.
⚠️ If nothing happens after pressing the Learn button on the wall control:
- Press the Learn button on the opener motor instead. It's usually located on the back or side of the unit. A ladder may be needed.
- Once you press it, you should hear a beep and the light should begin blinking blue.
- Then tap Continue in the app.
Step 7: Confirm the Beep and Blinking Blue Light
A blinking blue LED indicates the opener is ready to connect.
- Tap Yes in the app when you hear a beep and see the opener light blinking blue.
- The app will take a moment to search for your opener. This can take a few seconds. Stay near your opener.

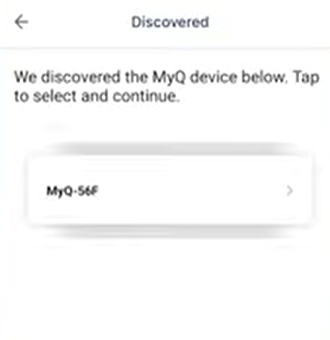

- Select the device that begins with myQ-XXX on the Discovered screen.
Step 8: Connect to Your Home Wi‑Fi
- Select your home Wi‑Fi network.
- Enter your Wi‑Fi password.
- Tap Next to connect.
The opener may beep several times while connecting.
Step 9: Finish Setup and Test
- Enter a name for the garage door opener.
- Tap Next.
- Tap Finish.
- In the myQ app, tap the garage door icon to test the connection. This may require One‑Tap or Press and Hold, depending on your settings.
- Open and close the garage door fully to finalize setup.
LED Light Status Guide
Use this guide to understand what the opener is doing during setup. The LED indicator light shows your opener's Wi‑Fi connection status during setup and is usually located under the light cover, near the Learn button.
The LED will change colors as setup progresses. If the LED stops on a specific color and does not continue to a solid green LED, select that LED status below for help.
Troubleshooting
If setup does not complete on the first try, a quick retry often resolves it.
Try these first:
- Stay within a few feet of the opener during setup.
- Double-check your Wi‑Fi password.
- Keep your phone connected to Wi‑Fi during setup.
If you are seeing an error code or need more detailed help, see Wi-Fi Garage Door Opener | Wi-Fi Troubleshooting Guide or watch the video below.
Device Already Linked to Another Account?
If the opener does not appear available for setup, it may already be associated with another myQ account.
See: myQ Device Ownership | Moving, Taking Ownership, and Error 310 Help.
Need Additional Help?
If setup still does not complete, see Wi-Fi Garage Door Opener | Wi-Fi Troubleshooting Guide or watch the video below.
