Security+ 3.0 Remote | Programming to MAXUM Commercial Door Operators

Before You Begin

• Read all instructions thoroughly before starting.
• The gate may move while programming. Ensure the area is clear.⚠️
• The remote buttons are pre-set to Security+ 3.0 out of the box. You will use the following steps to get the remote into Programming Mode to pair to ALL compatible receivers/operators.
• These instructions program the remote for single-button control. For three-button Open/Close/Stop functionality, it is recommended to use the 813LMXMC remote.

Step 1: Put the Remote into Programming Mode.

Follow the instructions based on your remote type:

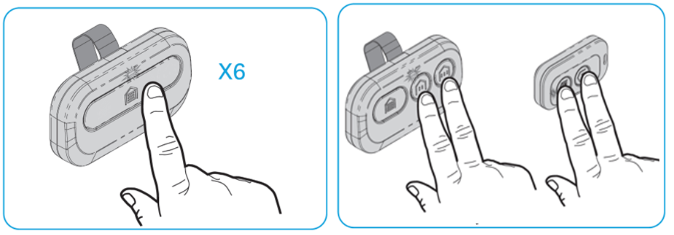

• 1-Button Remote (CH361): Press and release the remote button 6 times within 4 seconds. The red LED will turn solid to confirm Programming Mode is active.
• 2-Button Remote (L932M, L992U, CHU62, CH382): Press and hold both buttons simultaneously until the LED turns solid (typically 6 seconds), then release the buttons.
• 3-Button Remote (CH363, L993M): Press and hold the two smaller buttons simultaneously until the red LED stays solid.

A solid LED means the remote is in Programming Mode.

• • MAX Remotes display a red LED.
  • Universal Remotes display a blue LED.

Step 2: Program to the MAXUM Operator

1. On the MAXUM Wall Control panel, press CLOSE and STOP simultaneously to enter the Menu.
2. Select SYSTEM SETTINGS.
3. Navigate to CONNECTIVITY, select LEARN, then select REMOTES.
4. Finally, select SBC. The screen will display ‘SBC Learning’.
5. On your remote, press the button you want to use:
   • MAX Remote: Press the button twice.
   • Universal Remote: Press the button three times.

7. The LED on the remote will flash intermittently.
8. When the remote blinks twice, click the button once on the remote to lock in and exit Programming Mode.
9. Back on the MAXUM Wall Control, press the STOP and OPEN (UP arrow) buttons at the same time to return to the home screen.

Step 3: Verify Programming

1. Press the programmed button on the remote.
2. If the programming is successful, the door will move.
3. If unsuccessful, repeat the steps.
