Security+ 3.0 Remotes | Programming to Logic 5.0 Commercial Operators

Before You Begin

• Ensure the area around the door is clear. The door may move during programming.
• The remote buttons are pre-set to Security+ 3.0 out of the box. Because Logic 5.0 operators use Security+ and Security+ 2.0, you must put the remote into Programming Mode to pair to the operators.
• These instructions program the remote for single-button control. For three-button Open/Close/Stop functionality, it is recommended to use the 813LMXMC remote.

Step 1: Put the Remote into Programming Mode

Follow the instructions below based on your remote type:

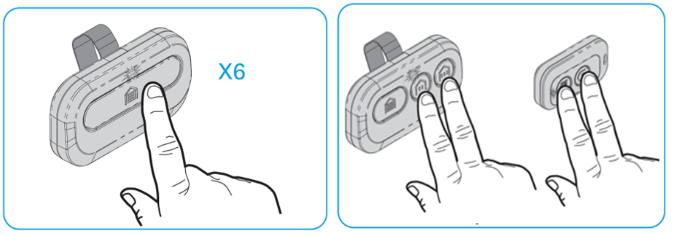

• 1-Button Remote (CH361): Press and release the remote button 6 times within 4 seconds. The red LED will turn solid to confirm Programming Mode is active.
• 2-Button Remote (L932M, L992U, CHU62, CH382): Press and hold both buttons simultaneously until the LED turns solid (typically 6 seconds), then release the buttons.
• 3-Button Remote (CH363, L993M): Press and hold the two smaller buttons simultaneously until the red LED stays solid.

A solid LED means the remote is in Programming Mode.

• • MAX Remotes display a red LED.
  • Universal Remotes display a blue LED.

Step 2: Program the remote to the operator

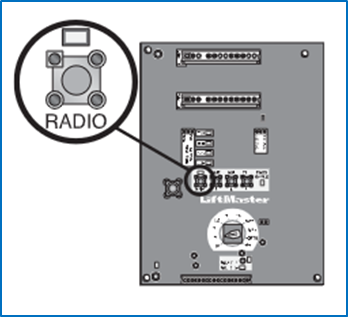

1. Locate the RADIO button on the operator logic board. The yellow LED above the button will light solid when pressed.

2. Within 20 seconds:
   • MAX Remote (red LED): Press the chosen button twice. When the yellow LED flashes, press the button once. The remote LED will blink slowly.
   • Universal Remote (blue LED): Press the chosen button three times. When the yellow LED flashes, press the button once. The remote LED will blink slowly.
3. Press the RADIO button again to exit learn mode.

Step 3: Verify programming

1. Press the programmed remote button.
2. If successful, the door will move.
   • If unsuccessful, repeat programming steps.
