Security+ 3.0 Keypads | Programming to MAXUM Commercial Door Operators

Before You Begin

• Ensure the area around the door or gate is clear. The door or gate MAY MOVE during programming and verification.
• Read all instructions carefully before starting.
• Keypads are pre-set to Security+ 3.0 out of the box. Because MAXUM Operators use Security+ 2.0, you must put the keypad into Programming Mode to pair it.
• You may need the access code for programming. If you do not have the access code, follow instructions in the MAXUM manual to reset the receiver.

Step 1: Put the Keypad in Programming Mode

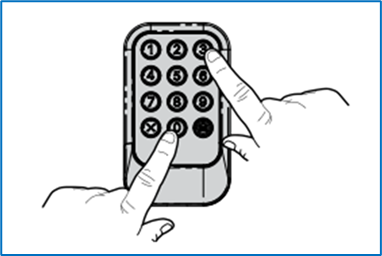

1. Press and hold the 0 and 3 buttons simultaneously.
2. Continue holding until the LEDs remain solid, typically about 6 seconds, then release the buttons.
   • LED indicators by keypad type:
     • MAX Keypad (L979M, CH348): LEDs solid red.
     • Universal Keypad (L979U, CHU48): LEDs solid blue.

Step 2: Program the Keypad to the Operator

1. On the MAXUM LCD Wall Control, enter the Menu by pressing and holding the CLOSE (DOWN arrow) and STOP buttons simultaneously for 3 seconds. (If a passcode is required, refer to the MAXUM installation manual).
2. Select SYSTEM SETTINGS.
3. Navigate to CONNECTIVITY.
4. Select LEARN.
5. Select REMOTES.
6. Select SBC – the screen will display “SBC Learning.”
7. Within 20 seconds:
   • MAX Keypads: Enter a 4-digit personal identification number (PIN) and press HOME TWICE.
   • Universal Keypads: Enter a 4-digit personal identification number (PIN) and press HOME THREE TIMES.
8. The LCD will display “SBC Learned,” and the keypad LEDs will flash intermittently.
9. After the LEDs blink twice, press and release HOME to lock in and exit Programming Mode.
10. On the operator, return to the home screen by pressing STOP and OPEN (UP arrow) simultaneously on the MAXUM LCD Wall Control.

Step 3: Verify Programming

• Enter your 4-digit PIN and press HOME to confirm the keypad has been successfully programmed.
• A successful programming will move the door the operator is installed on.
• If the programming is unsuccessful, repeat programming steps.
