Security+ 3.0 Remotes | Program to LiftMaster Gate Operators and Commercial Receivers

Compatible Operators and Receivers

These instructions apply to the following LiftMaster operators and external receivers:

Before You Begin

• The gate or door will move during programming. Ensure the area is clear, especially around entrapment zones. ⚠️
• The remote buttons are pre-set to Security+ 3.0 out of the box. You will use the following steps to get the remote into Programming Mode to  to ALL compatible receivers/operators.
• These instructions program the remote for single-button control. For three-button Open/Close/Stop functionality, it is recommended to use the 813LMXMC remote.

Step 1: Put the Remote into Programming Mode.

Follow the instructions based on your remote type:

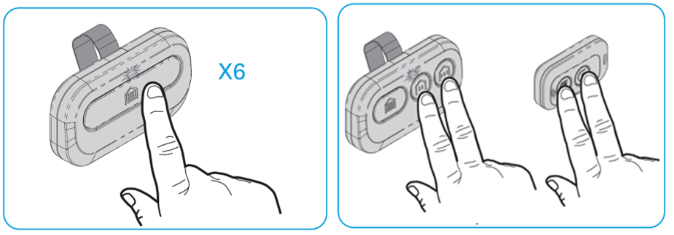

• 1-Button Remote (CH361): Press and release the remote button 6 times within 4 seconds. The red LED will turn solid to confirm Programming Mode is active.
• 2-Button Remote (L932M, L992U, CHU62, CH382): Press and hold both buttons simultaneously until the LED turns solid (typically 6 seconds), then release the buttons.
• 3-Button Remote (CH363, L993M): Press and hold the two smaller buttons simultaneously until the red LED stays solid.

A solid LED means the remote is in Programming Mode.

• MAX Remotes display a red LED.
• Universal Remotes display a blue LED.

Step 2: Program to the Gate Operator or 3-Channel Commercial Receiver

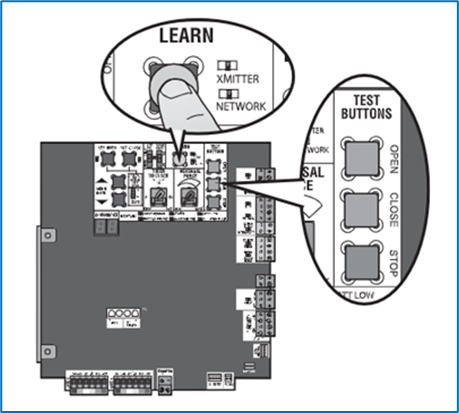

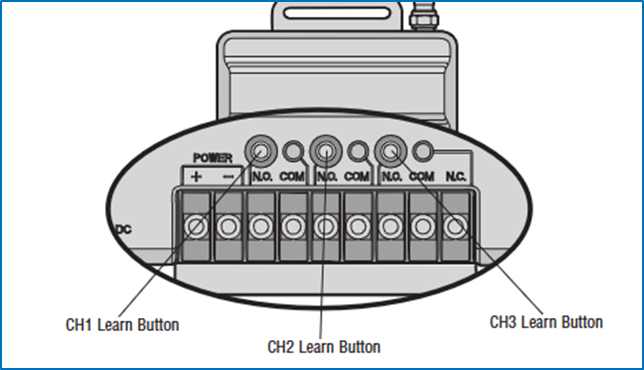

1. Locate the LEARN button on the operator or receiver. The small LED next to it will light up when pressed.

2. Press and release the LEARN button to put the operator/receiver into Programming Mode
   • The small LED next to the LEARN button on the operator/ receiver will light up.
   • Make sure the LED on the remote is solid to indicate it's in Programming Mode.
3. On your remote, press the button you want to use:
   • MAX Remote: Press the button twice.
   • Universal Remote: Press the button three times.
4. While transmitting, the LEARN LED on the operator/receiver will flash once and then turn off, confirming the remote has been recognized.
5. The LED on your remote will continue flashing until fully paired.
6. When the gate or door begins to move, immediately press and release any button on the remote.

Step 3: Verify Programming

• Ensure the operator/receiver is no longer in Programming Mode (the LEARN LED will be OFF).
• Press the programmed button on your remote.
• If successful, the gate or door will move.
• If unsuccessful, repeat steps.
